Confromer CTC¶

This tutorial shows you how to run a conformer ctc model with the LibriSpeech dataset.

Hint

We assume you have read the page Installation and have setup the environment for icefall.

Hint

We recommend you to use a GPU or several GPUs to run this recipe.

In this tutorial, you will learn:

How to prepare data for training and decoding

How to start the training, either with a single GPU or multiple GPUs

How to do decoding after training, with n-gram LM rescoring and attention decoder rescoring

How to use a pre-trained model, provided by us

Data preparation¶

$ cd egs/librispeech/ASR
$ ./prepare.sh

The script ./prepare.sh handles the data preparation for you, automagically. All you need to do is to run it.

The data preparation contains several stages, you can use the following two options:

--stage

--stop-stage

to control which stage(s) should be run. By default, all stages are executed.

For example,

$ cd egs/yesno/ASR
$ ./prepare.sh --stage 0 --stop-stage 0

means to run only stage 0.

To run stage 2 to stage 5, use:

$ ./prepare.sh --stage 2 --stop-stage 5

Hint

If you have pre-downloaded the LibriSpeech dataset and the musan dataset, say, they are saved in /tmp/LibriSpeech and /tmp/musan, you can modify the dl_dir variable in ./prepare.sh to point to /tmp so that ./prepare.sh won’t re-download them.

Note

All generated files by ./prepare.sh, e.g., features, lexicon, etc, are saved in ./data directory.

Training¶

Configurable options¶

$ cd egs/librispeech/ASR
$ ./conformer_ctc/train.py --help

shows you the training options that can be passed from the commandline. The following options are used quite often:

--full-libri

If it’s True, the training part uses all the training data, i.e., 960 hours. Otherwise, the training part uses only the subset train-clean-100, which has 100 hours of training data.

Caution

The training set is perturbed by speed with two factors: 0.9 and 1.1. If --full-libri is True, each epoch actually processes 3x960 == 2880 hours of data.

--num-epochs

It is the number of epochs to train. For instance, ./conformer_ctc/train.py --num-epochs 30 trains for 30 epochs and generates epoch-0.pt, epoch-1.pt, …, epoch-29.pt in the folder ./conformer_ctc/exp.

--start-epoch

It’s used to resume training. ./conformer_ctc/train.py --start-epoch 10 loads the checkpoint ./conformer_ctc/exp/epoch-9.pt and starts training from epoch 10, based on the state from epoch 9.
--world-size

It is used for multi-GPU single-machine DDP training.

If it is 1, then no DDP training is used.

If it is 2, then GPU 0 and GPU 1 are used for DDP training.

The following shows some use cases with it.
Use case 1: You have 4 GPUs, but you only want to use GPU 0 and GPU 2 for training. You can do the following:
$ cd egs/librispeech/ASR
$ export CUDA_VISIBLE_DEVICES="0,2"
$ ./conformer_ctc/train.py --world-size 2
Use case 2: You have 4 GPUs and you want to use all of them for training. You can do the following:
$ cd egs/librispeech/ASR
$ ./conformer_ctc/train.py --world-size 4
Use case 3: You have 4 GPUs but you only want to use GPU 3 for training. You can do the following:
$ cd egs/librispeech/ASR
$ export CUDA_VISIBLE_DEVICES="3"
$ ./conformer_ctc/train.py --world-size 1
Caution

Only multi-GPU single-machine DDP training is implemented at present. Multi-GPU multi-machine DDP training will be added later.
--max-duration

It specifies the number of seconds over all utterances in a batch, before padding. If you encounter CUDA OOM, please reduce it. For instance, if your are using V100 NVIDIA GPU, we recommend you to set it to 200.

Hint

Due to padding, the number of seconds of all utterances in a batch will usually be larger than --max-duration.

A larger value for --max-duration may cause OOM during training, while a smaller value may increase the training time. You have to tune it.

Pre-configured options¶

There are some training options, e.g., learning rate, number of warmup steps, results dir, etc, that are not passed from the commandline. They are pre-configured by the function get_params() in conformer_ctc/train.py

You don’t need to change these pre-configured parameters. If you really need to change them, please modify ./conformer_ctc/train.py directly.

Training logs¶

Training logs and checkpoints are saved in conformer_ctc/exp. You will find the following files in that directory:

epoch-0.pt, epoch-1.pt, …

These are checkpoint files, containing model state_dict and optimizer state_dict. To resume training from some checkpoint, say epoch-10.pt, you can use:
$ ./conformer_ctc/train.py --start-epoch 11
tensorboard/

This folder contains TensorBoard logs. Training loss, validation loss, learning rate, etc, are recorded in these logs. You can visualize them by:
$ cd conformer_ctc/exp/tensorboard
$ tensorboard dev upload --logdir . --description "Conformer CTC training for LibriSpeech with icefall"
It will print something like below:
TensorFlow installation not found - running with reduced feature set.
Upload started and will continue reading any new data as it's added to the logdir.

To stop uploading, press Ctrl-C.

New experiment created. View your TensorBoard at: https://tensorboard.dev/experiment/lzGnETjwRxC3yghNMd4kPw/

[2021-08-24T16:42:43] Started scanning logdir.
Uploading 4540 scalars...
Note there is a URL in the above output, click it and you will see the following screenshot:

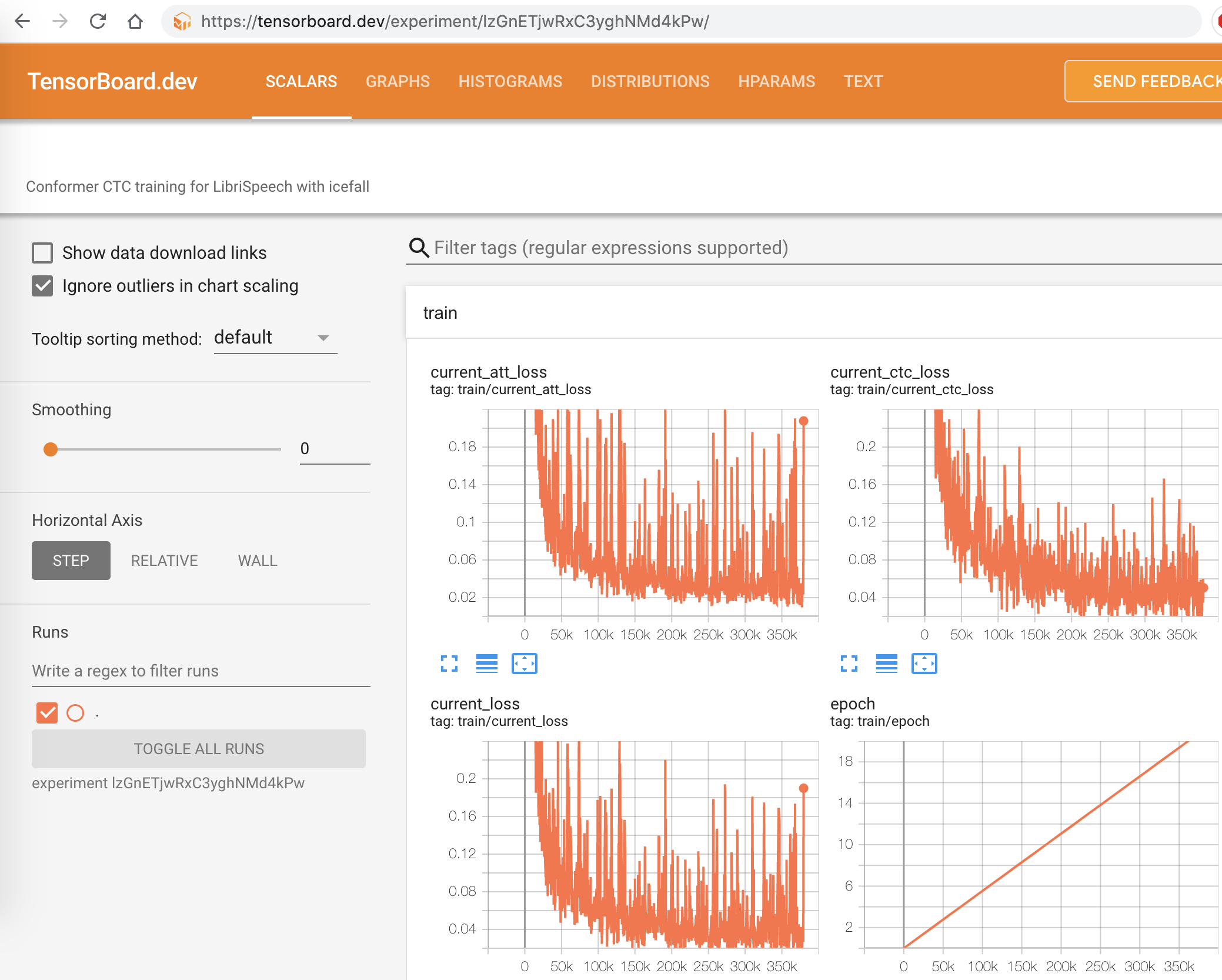

Fig. 2 TensorBoard screenshot.¶
log/log-train-xxxx

It is the detailed training log in text format, same as the one you saw printed to the console during training.

Usage examples¶

The following shows typical use cases:

Case 1¶

$ cd egs/librispeech/ASR
$ ./conformer_ctc/train.py --max-duration 200 --full-libri 0

It uses --max-duration of 200 to avoid OOM. Also, it uses only a subset of the LibriSpeech data for training.

Case 2¶

$ cd egs/librispeech/ASR
$ export CUDA_VISIBLE_DEVICES="0,3"
$ ./conformer_ctc/train.py --world-size 2

It uses GPU 0 and GPU 3 for DDP training.

Case 3¶

$ cd egs/librispeech/ASR
$ ./conformer_ctc/train.py --num-epochs 10 --start-epoch 3

It loads checkpoint ./conformer_ctc/exp/epoch-2.pt and starts training from epoch 3. Also, it trains for 10 epochs.

Decoding¶

The decoding part uses checkpoints saved by the training part, so you have to run the training part first.

$ cd egs/librispeech/ASR
$ ./conformer_ctc/decode.py --help

shows the options for decoding.

The commonly used options are:

--method

This specifies the decoding method.

The following command uses attention decoder for rescoring:
$ cd egs/librispeech/ASR
$ ./conformer_ctc/decode.py --method attention-decoder --max-duration 30 --lattice-score-scale 0.5
--lattice-score-scale

It is used to scale down lattice scores so that there are more unique paths for rescoring.

--max-duration

It has the same meaning as the one during training. A larger value may cause OOM.

Pre-trained Model¶

We have uploaded a pre-trained model to https://huggingface.co/pkufool/icefall_asr_librispeech_conformer_ctc.

We describe how to use the pre-trained model to transcribe a sound file or multiple sound files in the following.

Install kaldifeat¶

kaldifeat is used to extract features for a single sound file or multiple sound files at the same time.

Please refer to https://github.com/csukuangfj/kaldifeat for installation.

Download the pre-trained model¶

The following commands describe how to download the pre-trained model:

$ cd egs/librispeech/ASR
$ mkdir tmp
$ cd tmp
$ git lfs install
$ git clone https://huggingface.co/pkufool/icefall_asr_librispeech_conformer_ctc

Caution

You have to use git lfs to download the pre-trained model.

After downloading, you will have the following files:

$ cd egs/librispeech/ASR
$ tree tmp

tmp
`-- icefall_asr_librispeech_conformer_ctc
    |-- README.md
    |-- data
    |   |-- lang_bpe
    |   |   |-- HLG.pt
    |   |   |-- bpe.model
    |   |   |-- tokens.txt
    |   |   `-- words.txt
    |   `-- lm
    |       `-- G_4_gram.pt
    |-- exp
    |   `-- pretrained.pt
    `-- test_wavs
        |-- 1089-134686-0001.flac
        |-- 1221-135766-0001.flac
        |-- 1221-135766-0002.flac
        `-- trans.txt

6 directories, 11 files

File descriptions:

data/lang_bpe/HLG.pt

It is the decoding graph.

data/lang_bpe/bpe.model

It is a sentencepiece model. You can use it to reproduce our results.

data/lang_bpe/tokens.txt

It contains tokens and their IDs, generated from bpe.model. Provided only for convenience so that you can look up the SOS/EOS ID easily.

data/lang_bpe/words.txt

It contains words and their IDs.

data/lm/G_4_gram.pt

It is a 4-gram LM, used for n-gram LM rescoring.

exp/pretrained.pt

It contains pre-trained model parameters, obtained by averaging checkpoints from epoch-15.pt to epoch-34.pt. Note: We have removed optimizer state_dict to reduce file size.

test_waves/*.flac

It contains some test sound files from LibriSpeech test-clean dataset.

test_waves/trans.txt

It contains the reference transcripts for the sound files in test_waves/.

The information of the test sound files is listed below:

$ soxi tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/*.flac

Input File     : 'tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1089-134686-0001.flac'
Channels       : 1
Sample Rate    : 16000
Precision      : 16-bit
Duration       : 00:00:06.62 = 106000 samples ~ 496.875 CDDA sectors
File Size      : 116k
Bit Rate       : 140k
Sample Encoding: 16-bit FLAC

Input File     : 'tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1221-135766-0001.flac'
Channels       : 1
Sample Rate    : 16000
Precision      : 16-bit
Duration       : 00:00:16.71 = 267440 samples ~ 1253.62 CDDA sectors
File Size      : 343k
Bit Rate       : 164k
Sample Encoding: 16-bit FLAC

Input File     : 'tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1221-135766-0002.flac'
Channels       : 1
Sample Rate    : 16000
Precision      : 16-bit
Duration       : 00:00:04.83 = 77200 samples ~ 361.875 CDDA sectors
File Size      : 105k
Bit Rate       : 174k
Sample Encoding: 16-bit FLAC

Total Duration of 3 files: 00:00:28.16

Usage¶

$ cd egs/librispeech/ASR
$ ./conformer_ctc/pretrained.py --help

displays the help information.

It supports three decoding methods:

HLG decoding

HLG + n-gram LM rescoring

HLG + n-gram LM rescoring + attention decoder rescoring

HLG decoding¶

HLG decoding uses the best path of the decoding lattice as the decoding result.

The command to run HLG decoding is:

$ cd egs/librispeech/ASR
$ ./conformer_ctc/pretrained.py \
  --checkpoint ./tmp/icefall_asr_librispeech_conformer_ctc/exp/pretrained.pt \
  --words-file ./tmp/icefall_asr_librispeech_conformer_ctc/data/lang_bpe/words.txt \
  --HLG ./tmp/icefall_asr_librispeech_conformer_ctc/data/lang_bpe/HLG.pt \
  ./tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1089-134686-0001.flac \
  ./tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1221-135766-0001.flac \
  ./tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1221-135766-0002.flac

The output is given below:

2021-08-20 11:03:05,712 INFO [pretrained.py:217] device: cuda:0
2021-08-20 11:03:05,712 INFO [pretrained.py:219] Creating model
2021-08-20 11:03:11,345 INFO [pretrained.py:238] Loading HLG from ./tmp/icefall_asr_librispeech_conformer_ctc/data/lang_bpe/HLG.pt
2021-08-20 11:03:18,442 INFO [pretrained.py:255] Constructing Fbank computer
2021-08-20 11:03:18,444 INFO [pretrained.py:265] Reading sound files: ['./tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1089-134686-0001.flac', './tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1221-135766-0001.flac', './tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1221-135766-0002.flac']
2021-08-20 11:03:18,507 INFO [pretrained.py:271] Decoding started
2021-08-20 11:03:18,795 INFO [pretrained.py:300] Use HLG decoding
2021-08-20 11:03:19,149 INFO [pretrained.py:339]
./tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1089-134686-0001.flac:
AFTER EARLY NIGHTFALL THE YELLOW LAMPS WOULD LIGHT UP HERE AND THERE THE SQUALID QUARTER OF THE BROTHELS

./tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1221-135766-0001.flac:
GOD AS A DIRECT CONSEQUENCE OF THE SIN WHICH MAN THUS PUNISHED HAD GIVEN HER A LOVELY CHILD WHOSE PLACE WAS ON THAT SAME DISHONOURED
BOSOM TO CONNECT HER PARENT FOR EVER WITH THE RACE AND DESCENT OF MORTALS AND TO BE FINALLY A BLESSED SOUL IN HEAVEN

./tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1221-135766-0002.flac:
YET THESE THOUGHTS AFFECTED HESTER PRYNNE LESS WITH HOPE THAN APPREHENSION

2021-08-20 11:03:19,149 INFO [pretrained.py:341] Decoding Done

HLG decoding + LM rescoring¶

It uses an n-gram LM to rescore the decoding lattice and the best path of the rescored lattice is the decoding result.

The command to run HLG decoding + LM rescoring is:

$ cd egs/librispeech/ASR
$ ./conformer_ctc/pretrained.py \
  --checkpoint ./tmp/icefall_asr_librispeech_conformer_ctc/exp/pretrained.pt \
  --words-file ./tmp/icefall_asr_librispeech_conformer_ctc/data/lang_bpe/words.txt \
  --HLG ./tmp/icefall_asr_librispeech_conformer_ctc/data/lang_bpe/HLG.pt \
  --method whole-lattice-rescoring \
  --G ./tmp/icefall_asr_librispeech_conformer_ctc/data/lm/G_4_gram.pt \
  --ngram-lm-scale 0.8 \
  ./tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1089-134686-0001.flac \
  ./tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1221-135766-0001.flac \
  ./tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1221-135766-0002.flac

Its output is:

2021-08-20 11:12:17,565 INFO [pretrained.py:217] device: cuda:0
2021-08-20 11:12:17,565 INFO [pretrained.py:219] Creating model
2021-08-20 11:12:23,728 INFO [pretrained.py:238] Loading HLG from ./tmp/icefall_asr_librispeech_conformer_ctc/data/lang_bpe/HLG.pt
2021-08-20 11:12:30,035 INFO [pretrained.py:246] Loading G from ./tmp/icefall_asr_librispeech_conformer_ctc/data/lm/G_4_gram.pt
2021-08-20 11:13:10,779 INFO [pretrained.py:255] Constructing Fbank computer
2021-08-20 11:13:10,787 INFO [pretrained.py:265] Reading sound files: ['./tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1089-134686-0001.flac', './tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1221-135766-0001.flac', './tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1221-135766-0002.flac']
2021-08-20 11:13:10,798 INFO [pretrained.py:271] Decoding started
2021-08-20 11:13:11,085 INFO [pretrained.py:305] Use HLG decoding + LM rescoring
2021-08-20 11:13:11,736 INFO [pretrained.py:339]
./tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1089-134686-0001.flac:
AFTER EARLY NIGHTFALL THE YELLOW LAMPS WOULD LIGHT UP HERE AND THERE THE SQUALID QUARTER OF THE BROTHELS

./tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1221-135766-0001.flac:
GOD AS A DIRECT CONSEQUENCE OF THE SIN WHICH MAN THUS PUNISHED HAD GIVEN HER A LOVELY CHILD WHOSE PLACE WAS ON THAT SAME DISHONOURED
BOSOM TO CONNECT HER PARENT FOR EVER WITH THE RACE AND DESCENT OF MORTALS AND TO BE FINALLY A BLESSED SOUL IN HEAVEN

./tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1221-135766-0002.flac:
YET THESE THOUGHTS AFFECTED HESTER PRYNNE LESS WITH HOPE THAN APPREHENSION

2021-08-20 11:13:11,737 INFO [pretrained.py:341] Decoding Done

HLG decoding + LM rescoring + attention decoder rescoring¶

It uses an n-gram LM to rescore the decoding lattice, extracts n paths from the rescored lattice, recores the extracted paths with an attention decoder. The path with the highest score is the decoding result.

The command to run HLG decoding + LM rescoring + attention decoder rescoring is:

$ cd egs/librispeech/ASR
$ ./conformer_ctc/pretrained.py \
  --checkpoint ./tmp/icefall_asr_librispeech_conformer_ctc/exp/pretrained.pt \
  --words-file ./tmp/icefall_asr_librispeech_conformer_ctc/data/lang_bpe/words.txt \
  --HLG ./tmp/icefall_asr_librispeech_conformer_ctc/data/lang_bpe/HLG.pt \
  --method attention-decoder \
  --G ./tmp/icefall_asr_librispeech_conformer_ctc/data/lm/G_4_gram.pt \
  --ngram-lm-scale 1.3 \
  --attention-decoder-scale 1.2 \
  --lattice-score-scale 0.5 \
  --num-paths 100 \
  --sos-id 1 \
  --eos-id 1 \
  ./tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1089-134686-0001.flac \
  ./tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1221-135766-0001.flac \
  ./tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1221-135766-0002.flac

The output is below:

2021-08-20 11:19:11,397 INFO [pretrained.py:217] device: cuda:0
2021-08-20 11:19:11,397 INFO [pretrained.py:219] Creating model
2021-08-20 11:19:17,354 INFO [pretrained.py:238] Loading HLG from ./tmp/icefall_asr_librispeech_conformer_ctc/data/lang_bpe/HLG.pt
2021-08-20 11:19:24,615 INFO [pretrained.py:246] Loading G from ./tmp/icefall_asr_librispeech_conformer_ctc/data/lm/G_4_gram.pt
2021-08-20 11:20:04,576 INFO [pretrained.py:255] Constructing Fbank computer
2021-08-20 11:20:04,584 INFO [pretrained.py:265] Reading sound files: ['./tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1089-134686-0001.flac', './tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1221-135766-0001.flac', './tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1221-135766-0002.flac']
2021-08-20 11:20:04,595 INFO [pretrained.py:271] Decoding started
2021-08-20 11:20:04,854 INFO [pretrained.py:313] Use HLG + LM rescoring + attention decoder rescoring
2021-08-20 11:20:05,805 INFO [pretrained.py:339]
./tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1089-134686-0001.flac:
AFTER EARLY NIGHTFALL THE YELLOW LAMPS WOULD LIGHT UP HERE AND THERE THE SQUALID QUARTER OF THE BROTHELS

./tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1221-135766-0001.flac:
GOD AS A DIRECT CONSEQUENCE OF THE SIN WHICH MAN THUS PUNISHED HAD GIVEN HER A LOVELY CHILD WHOSE PLACE WAS ON THAT SAME DISHONOURED
BOSOM TO CONNECT HER PARENT FOR EVER WITH THE RACE AND DESCENT OF MORTALS AND TO BE FINALLY A BLESSED SOUL IN HEAVEN

./tmp/icefall_asr_librispeech_conformer_ctc/test_wavs/1221-135766-0002.flac:
YET THESE THOUGHTS AFFECTED HESTER PRYNNE LESS WITH HOPE THAN APPREHENSION

2021-08-20 11:20:05,805 INFO [pretrained.py:341] Decoding Done

Colab notebook¶

We do provide a colab notebook for this recipe showing how to use a pre-trained model.

Hint

Due to limited memory provided by Colab, you have to upgrade to Colab Pro to run HLG decoding + LM rescoring and HLG decoding + LM rescoring + attention decoder rescoring. Otherwise, you can only run HLG decoding with Colab.

Congratulations! You have finished the librispeech ASR recipe with conformer CTC models in icefall.
